RICE TRANSPLANTER, CHOOSE XIAOJING

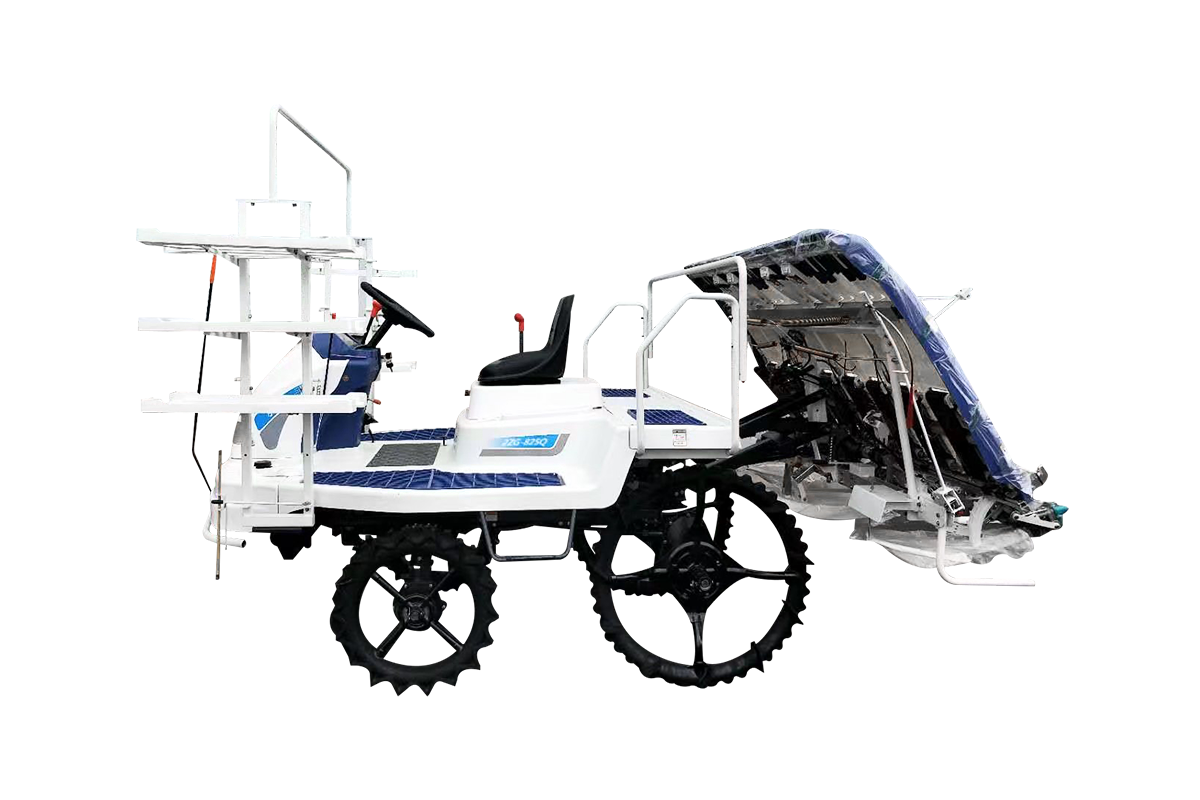

2ZG-825Q Eight-row Riding Type Rice Transplanter

2ZG-825Q Eight-row Riding Type Rice  Transplanter

2ZG-825Q eight-row riding high-speed rice transplanter is a professional agricultural machinery equipment. It adopts a V-type twin-cylinder gasoline engine with stable performance. Whether it is on flat ground or in a complex working environment, the transplanter can easily cope with it and has good escape ability. It has high technological content, realizes the integrated design of machine, electricity and hydraulic, and is simple and user-friendly to operate. The seedling box can be automatically raised and lowered, with strong operating ability and high working efficiency. The high-speed transplanter adopts an engine of more than 15.3kw, four-wheel drive and hydraulic power steering. It can easily operate within 50cm of the tillage layer, and the operating speed reaches 1.5m/s.
The operation standard of the transplanter is very high and the adaptability is also very strong. It adopts an automatic balancing device for the seedling box and an automatic oil pressure adjustment device designed according to the hardness of the field surface. It is equipped with a high-standard combined seedling press and an advanced seedling separation mechanism, which fully guarantees the transplanting quality of the transplanter during high-speed travel. The steering gear of the transplanter adopts Eaton hydraulic power technology, making steering easier and more flexible. Whether in a small field or a narrow farm road, users can easily control the machine and improve work efficiency.
The rice transplanter also uses the original HST technology of Japan's KYB company to ensure the stable performance and reliable quality of the machine. HST technology can provide stable power output, ensure the stability and reliability of the machine during operation, and enable the rice transplanter to operate efficiently for a long time. In addition, the rice transplanter also uses large-diameter wheels with good performance. Large-diameter wheels can provide better traction and stability, allowing the rice transplanter to travel stably in different terrains and slippery farmlands, improving work efficiency. At the same time, the adjustment and maintenance of the rice transplanter are very simple and convenient. The number of horizontal seedling removals, the amount of vertical seedling removals, the hole distance, the planting depth and other indicators can be quickly adjusted at any time. There are few maintenance parts and obvious signs, which are easy to operate.

Rated speed
(Petrol engines: standard speed)
r/min 3600
1 Overall Dimensions (LxWxH) mm 3360×2460×2110
2 Operational Speed Km/h 0*5.4
3 Hourly Productivity hm2/h 0.2~0.5
4 Fuel consumption per unit kg /hm2 S13.5
5 Working row Row 8
6 Row Distance mm 250
7 Hole distance adjustment mechanism type Pull lever
8 Number of hole spacing adjustment gears Unit 8
9 Pitch mm 240/210/180/170/160/140/120/110
10 Transplanting depth mm 2~44
11 Shifting distance mm 16.4、14.4、11.5
12 Depth of seedling removal mm 8~18
13 Transplanting frequency unit ≤66
14 Transmission mode Continuously variable transmission
15 Walking wheel Front Structure type Solid tyres *2
Diameter mm 650
Rear Structure type Rubber convex wheel*2
Diameter mm 900
16 Balanced mechanism type Mechanical type
  • 2ZG-825Q Eight-row Riding Type Rice  Transplanter
  • 2ZG-825Q Eight-row Riding Type Rice  Transplanter
  • 2ZG-825Q Eight-row Riding Type Rice  Transplanter
About Us
Zhejiang Xiaojing Agricultural Machinery Manufacturing Co., Ltd.
Shaoxing City, Zhejiang Province with a registered capital of 41 million yuan. The trademark for Xiaojing Agricultural Machinery was registered in early 2011.
Xiaojing is professional 2ZG-825Q Eight-row Riding Type Rice Transplanter Factory and Custom 2ZG-825Q Eight-row Riding Type Rice Transplanter Suppliers in China. The company specializes in the production of rice transplanters and has hired a team of foreign experts from around the world to make the original designs. As a domestic production enterprise with a complete range of products and extensive adaptability and advanced technology in the same industry, KOSYO has developed rice transplanters suitable for different countries, regions and varieties, with six series and more than ten products. The variety of products has outpaced Japanese companies. The company's products are all included in the National Special Subsidy Catalog for agricultural machinery purchases, with the AP60 Handheld Transplanter and High Speed Transplanter being key new products for the nation. The products are also based in China and have been exported to Southeast Asia, Africa, South America and other countries and regions.
The company was included in the National Industrial Revitalization Program in 2009, named one of the 100 investment-worthy small and medium-sized enterprises in Zhejiang Province in 2010, and named an agricultural science and technology enterprise in Zhejiang Province. In 2011, it was rated as a national high-tech enterprise, and in 2014, it was rated as a third-level safety production standardization enterprise.
With a plant area of 55 acres and assets of more than 160 million yuan, KYOSO has a complete suite of advanced and complete machinery manufacturing equipment, forming a complete manufacturing system of machining, sheet metal, injection molding, spray painting, component assembly, whole machine assembly and molding.
