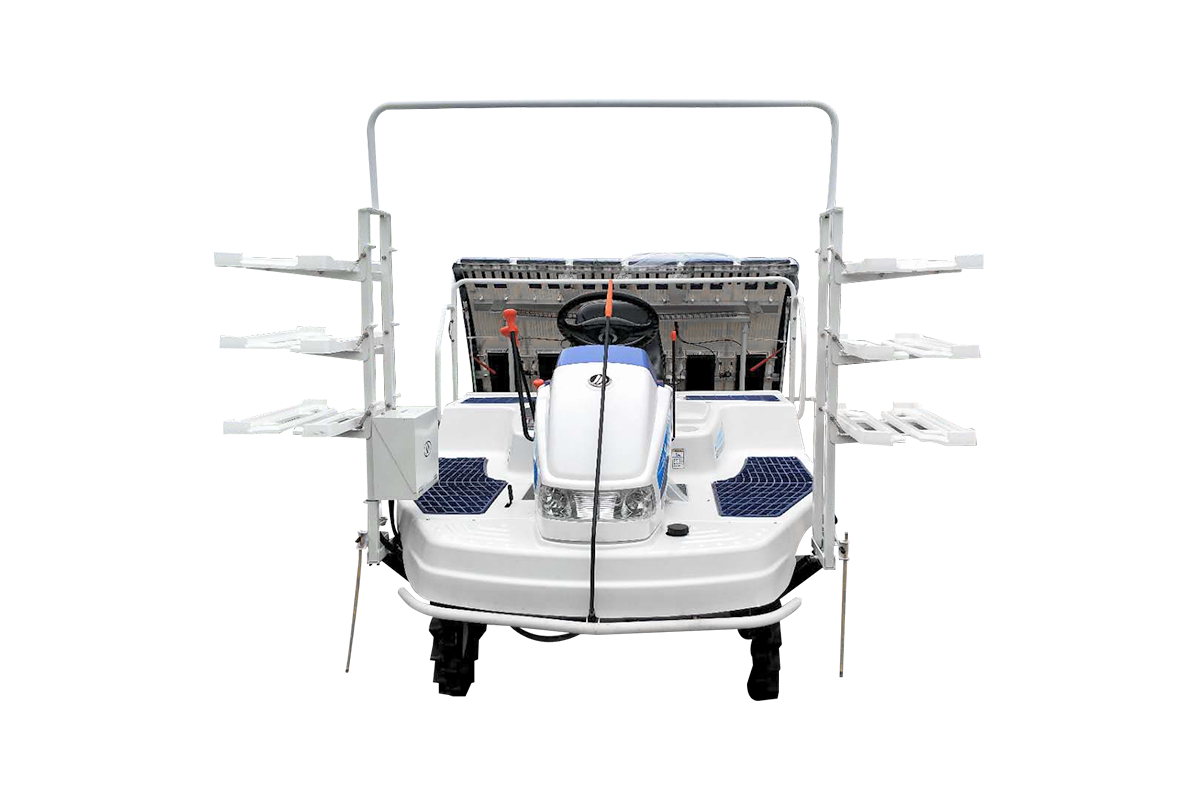

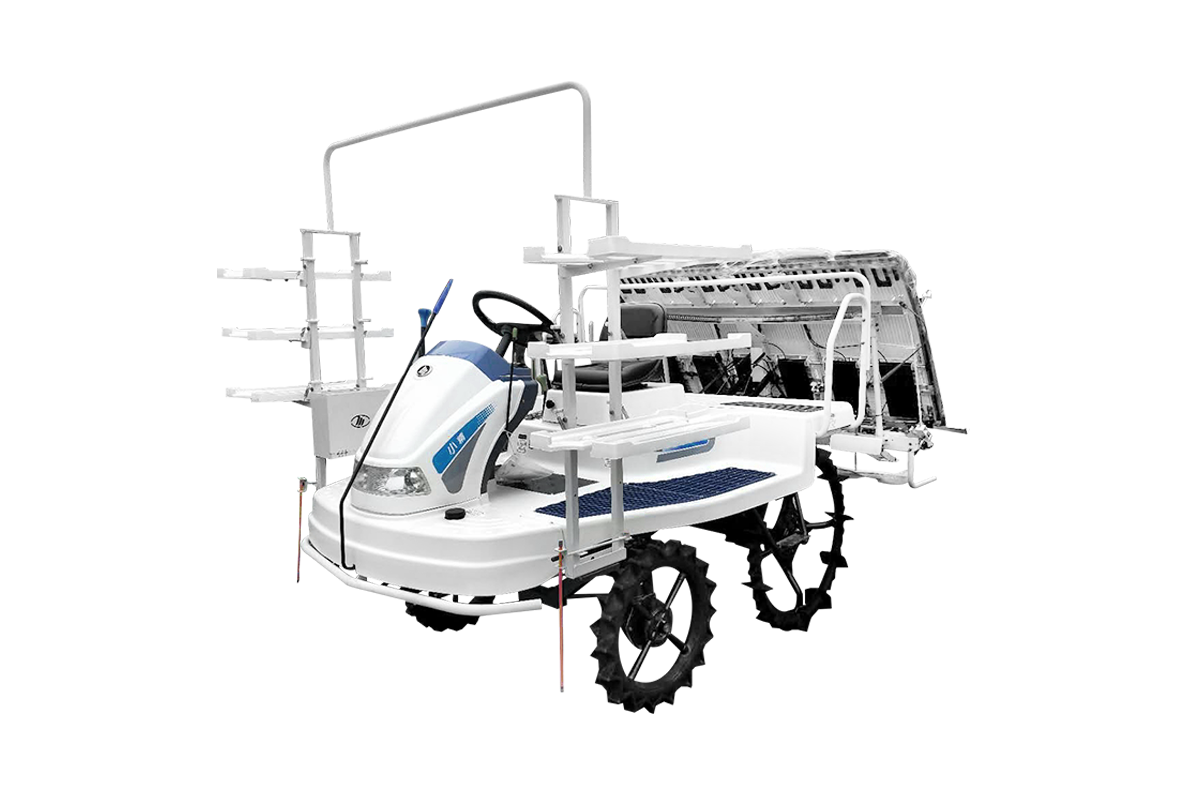

2ZG-630 Six-row Riding Type Rice Transplanter

2ZG-630 Six-row Riding Type Rice  Transplanter

The 2ZG-630 multi-application six-row high-efficiency riding rice transplanter has become the ideal equipment in the agricultural field with its good performance and stability. Whether it is on flat ground or in complex working environments, the rice transplanter can easily cope with it and provide good escape ability. It adopts a V-type twin-cylinder gasoline engine with stable performance, which not only ensures strong power, but also reduces noise and fuel consumption, saving costs for users. Eaton hydraulic power assist technology makes the rice transplanter's steering more flexible, and users can easily control the machine and improve working efficiency.
The original HST technology of Japan's KYB company ensures the stable performance and reliable quality of the rice transplanter, allowing the rice transplanter to operate efficiently for a long time. The control panel integrates the gear control handle, which is easy to operate. Users can easily control the speed and direction, improving the flexibility and efficiency of the operation. The large-diameter wheels provide better traction and stability, allowing the rice transplanter to travel stably in different terrains and slippery farmlands, improving working efficiency. In addition, the adjustment and maintenance of the rice transplanter are also very simple and convenient. Users can quickly adjust various indicators, and the maintenance parts are obvious and easy to operate. Whether in terms of performance, stability or ease of operation, the 2ZG-630 multi-application six-row high-efficiency riding rice transplanter is a trustworthy agricultural machinery equipment.

Item Unit Value
Rated Engine Power (or Calibrated Power) kw 14.7
Rated Engine Speed (or Nominal Speed) r/min 3600
Overall Dimensions (LxWxH) mm 3360X2210X2210
Operating Speed m/s 0~1.5
Operating Productivity hm2/h 0.2~0.5
Fuel Consumption kg/hm² ≤15
Working row row 6
Row Distance mm 300
Pitch adjustment mechanism type Pull lever
Number of pitch adjusting gears pcs 8
Pitch mm 240/210/180/170/160/140/120/110
Transplanting depth mm 2~44
Shifting distance mm Three levels: 17.5/15.6/12.7
Depth of seedling removal mm 8~18
Transplanting frequency (single row) Hole/min ≤66
Transmission mode Stepless speed change
Walking wheel structure type (front, rear) Solid tyres *2 Rubber convex wheel*2
Walking wheel diameter (front, rear) mm 650、900
Balanced mechanism type Mechanical type
Planting arm type Rotary type
  • 2ZG-630 Six-row Riding Type Rice  Transplanter
  • 2ZG-630 Six-row Riding Type Rice  Transplanter
  • 2ZG-630 Six-row Riding Type Rice  Transplanter
